Monitor workflow execution

This document describes the various observability data that can be used to monitor the execution of workflow runs or schedules.

Audits

All NerdGraph mutation calls are audited and the data can be queried in NrAuditEvent in the customer account.

WorkflowRun

SELECT actionIdentifier, actorId, actorType, description
FROM NrAuditEvent
WHERE targetType = 'workflow_run'
SINCE 1 hour ago

WorkflowSchedule

SELECT actionIdentifier, actorId, actorType, description
FROM NrAuditEvent
WHERE targetType = 'workflow_schedule'
SINCE 1 hour ago

Events

All workflow runs emit WorkflowAutomationEvent data in NRDB in the customer account which was used to start, or schedule, a workflow.

A new namespace WorkflowAutomation is created for the event data of workflow runs.

WorkflowAutomationEvent schema

Attribute	Type	Description
`timestamp`	EpochMillisecond	Event timestamp
`type`	WORKFLOW \| STEP	Type of event
`status`	STARTED \| COMPLETED \| FAILED \| TIMED_OUT \| STOPPED	Status associated with the event
`definitionName`	String	The workflow definition name associated with this workflow run
`definitionVersion`	String	The workflow definition version associated with this workflow run
`definitionScopeType`	GLOBAL \| ORGANIZATION \| ACCOUNT	The workflow definition scope type associated with this workflow run
`definitionScopeId`	String	The workflow definition scope ID associated with this workflow run
`definitionEntityGuid`	String	The workflow definition entityGuid associated with this workflow run
`userId`	Int	New Relic's user ID that started the workflow
`runId`	UUID	Unique ID of the workflow run
`durationMillisecond`	EpochMillisecond	Duration for a COMPLETED \| FAILED \| TIMED_OUT status. This is typically what is metered for monetization for ACTION stepType and STEP type.
`stepName`	String	Customer-given step name in the workflow
`stepType`	ACTION \| LOOP \| SWITCH \| STATE
`stepActionName`	String	Fully qualified name of the action
`stepActionVersion`	Int	Version of the action

Example query

For example:

SELECT *
FROM WorkflowAutomationEvent
where definitionName = 'json-parsing' and runId = '31c973d2-c669-4bd7-9b15-7e3a70a4a074'
SINCE 1 month ago

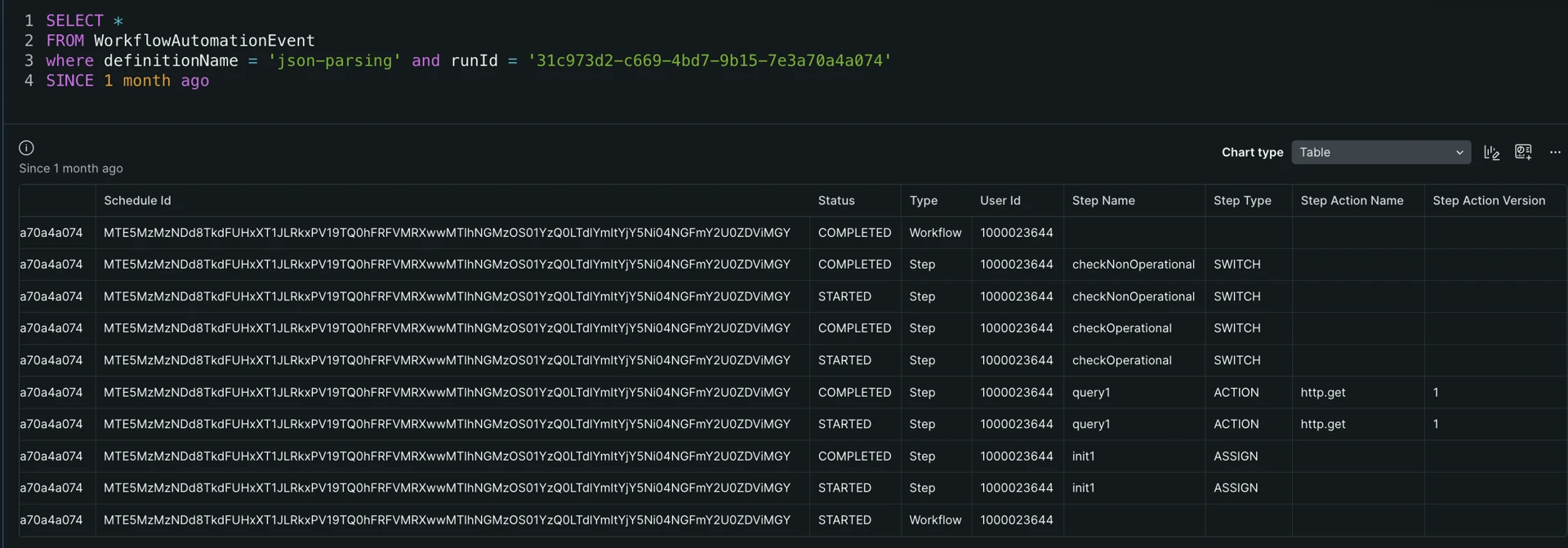

Diagram of WorkflowAutomationEvent schema

Logs

Optionally, a workflow can be started, or scheduled, specifying a logLevel verbosity option. Those logs are added to the workflow account that was used to start, or schedule, the workflow.

Logs are attributed with the following:

workflowAutomation.name is the WorkflowDefinition name
workflowAutomation.version is the WorkflowDefinition version
workflowAutomation.runId is the Workflow runId
entityGuid is the WorkflowDefinition id

If started from a schedule occurrence:

workflowAutomation.scheduleId

For Action step type, when using DEBUG each action input adds an additional attribute to the log entry with the format workflowAutomation.inputs.<inputName>: <inputValue>.

When TRACE log level will be implemented, the action output will also be added to the log entry with the format workflowAutomation.outputs.<outputName>: <outputValue>.

Example NRQL query

You can query your log with the following NRQL query:

SELECT message FROM Log WHERE workflowAutomation.runId = '{run_id}' SINCE 3 hours ago

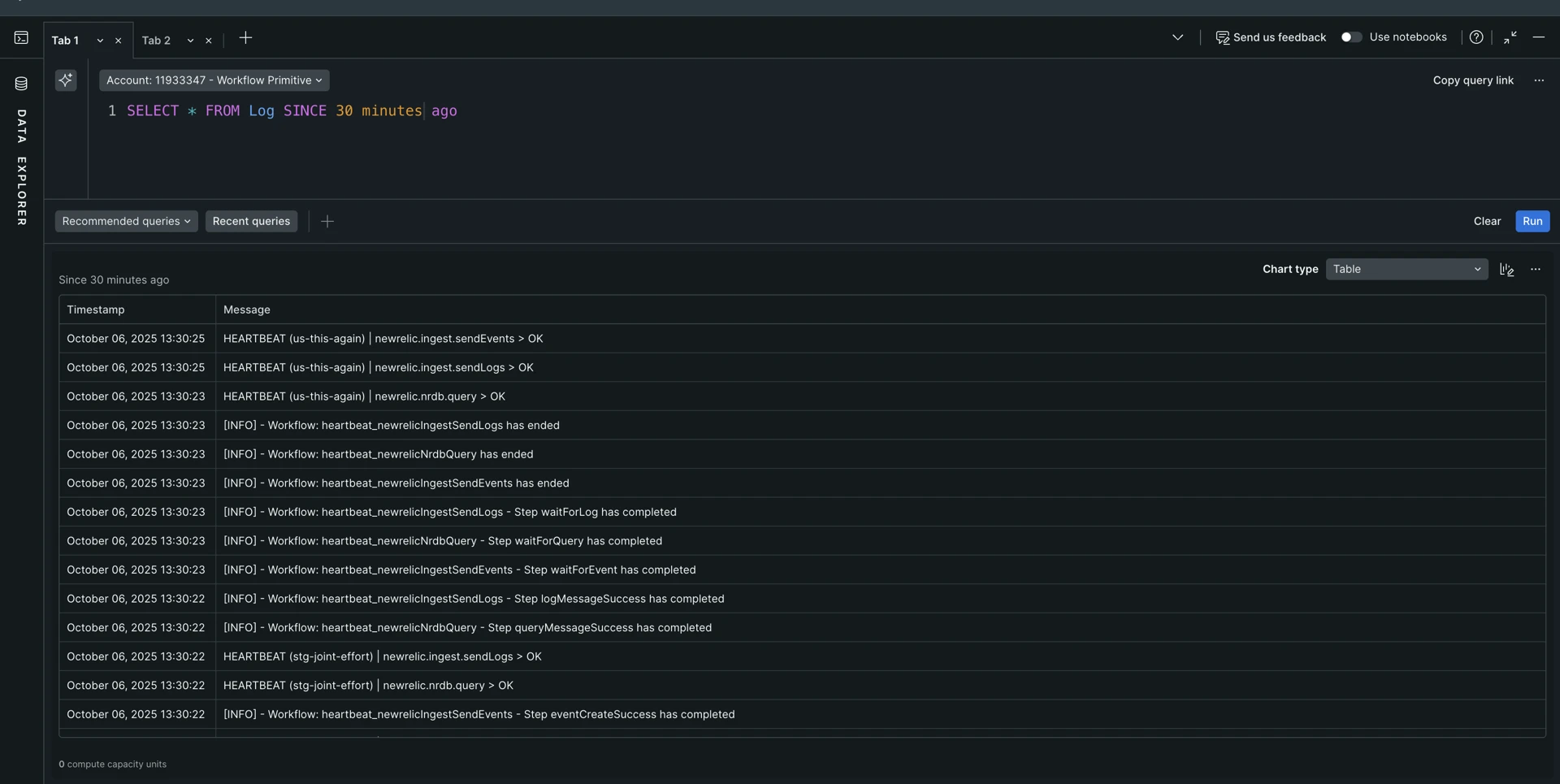

Diagram of log attributes for workflow runs

Besides workflowAutomation.runId, some other log attributes that can help with Log data querying are:

workflowAutomation.name
workflowAutomation.version

For scheduled runs, the log entries will have workflowAutomation.scheduleId attribute as well.
